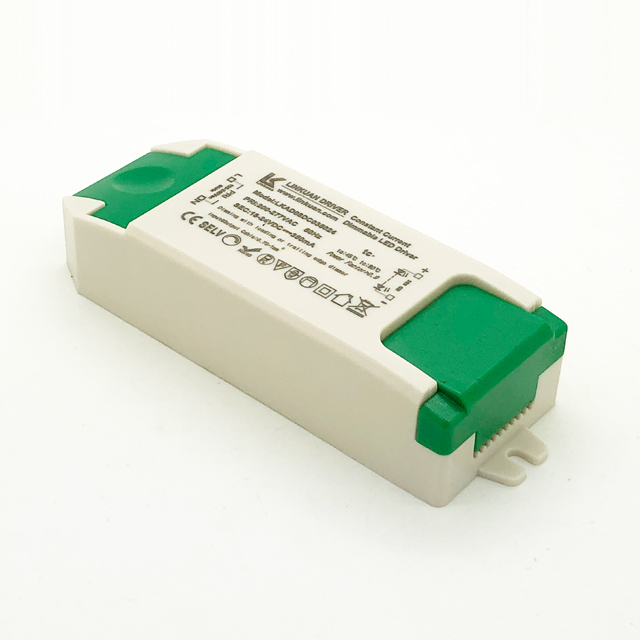

LKAD014DV2.0 14W 26-40V 350mA Dimmable LED drivers
  • LKAD014DV2.0 14W 26-40V 350mA Dimmable LED drivers

LKAD014DV2.0 14W 26-40V 350mA Dimmable LED drivers

  • Product model : LKAD014DV2.0
  • Input voltage : 200-240Vac
  • Output power(W) : 14W
  • Output voltage : 26-40Vdc
  • Output current(A) : 150-350mA
  • Light adjustment : Triac Dimming
  • Size(MM) : 105 x 40 x 25mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD04DV2.0 SAA approved 14W 26-40V 350mA Dimmable LED drivers

Features

  • 200-240VAC(50/60Hz) Input
  • Isolated, leading (or trailing) triac dimming,dimming much smoothly;
  • Hight efficiency,hight PF,good steady;
  • Short circuit,over voltage,over current and over temperature protection;
  • 100% full load burn-in test;
  • CE approved;
  • ndependent, ClassⅡ constant current type;
  • degree of protection IP20;
  • suitable for LED lighting,ceiling light,down light and panel light;
  • 3 years warranty.




More Details

Model

LKAD014DV2.0

輸出Output

電壓/Rated voltage

36V

空載電壓/No-load Voltage

45V

DC電壓范圍/DC voltage range

26-40V

DC電流范圍/DC current range

300mA

電流精度/Current precision

(+/-)5%

額定功率/Rated power

12W

開機延時/Setup Time

輸入Input

AC電壓范圍/AC Voltage range

180-240VAC

頻率/Frequency

50/60hz

諧波/THD

功率因數/Power factor

0.937/220VAC

使用環境Environment Requirements

工作溫度/濕度要求Operating Temp./RH

-30~+50℃/20~95%

儲存溫度,濕度要求

Storage Temp./RH

-40~+80℃/10~95%

安全和電磁兼容

認證標識/Certificate

CE Standard

安全規范/Safety standard

CE Standard

電磁兼容/EMC compliance

CE Standard

耐壓/Withstand voltage

CE Standard
