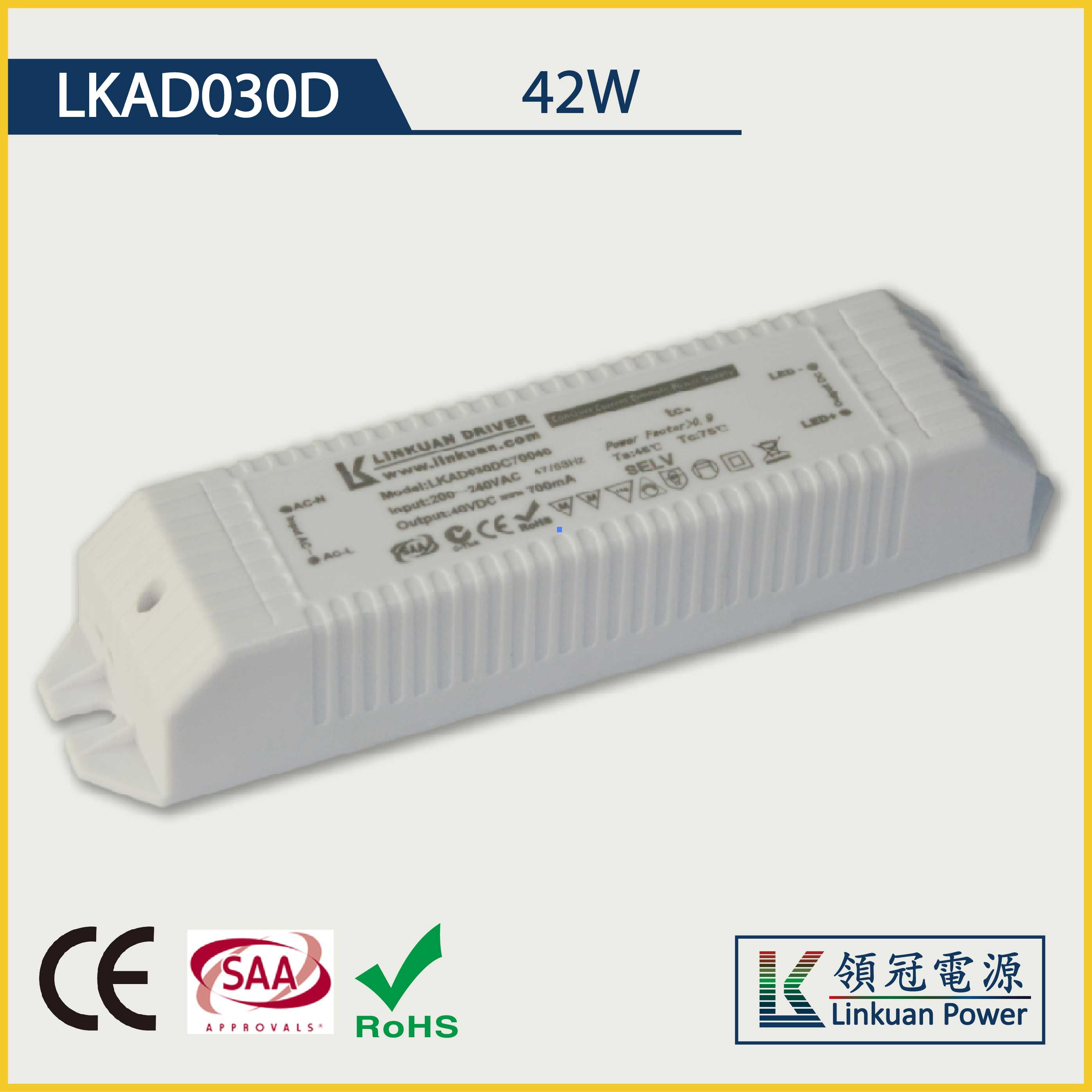

| Model | LKAD030D | ||||||
| 輸出 Output | 電壓/Rated voltage | 36V-42V | |||||
| 空載電壓/No-load Voltage | 45V | ||||||
| DC電壓范圍/DC voltage range | 27-40V | ||||||
| DC電流范圍/DC current range | 900mA | ||||||
| 電流精度/Current precision | (+/-)5% | ||||||
| 額定功率/Rated power | 45W | ||||||
| 開機延時/Setup Time | / | ||||||
| 輸入 Input | AC電壓范圍/AC Voltage range | 200-240VAC | |||||
| 頻率/Frequency | 50/60hz | ||||||
| 諧波/THD | ≤15% | ||||||
| 功率因數/Power factor | 0.997/220VAC | ||||||
| 使用環境 Environment Requirements | 工作溫度/濕度要求 Operating Temp./RH | -30～+50℃/20～95% | |||||
| 儲存溫度,濕度要求 Storage Temp./RH | -40～+80℃/10～95% | ||||||
| 安全和電磁兼容 | 認證標識/Certificate | 符合CE | |||||
| 安全規范/Safety standard | 符合LVD | ||||||
| 電磁兼容/EMC compliance | 符合EMC | ||||||
| 耐壓/Withstand voltage | 3750V | ||||||
| 其他 | 尺寸/Size | L167mm * W40mm * H29mm | |||||
| 重量/Net weight | / | ||||||
